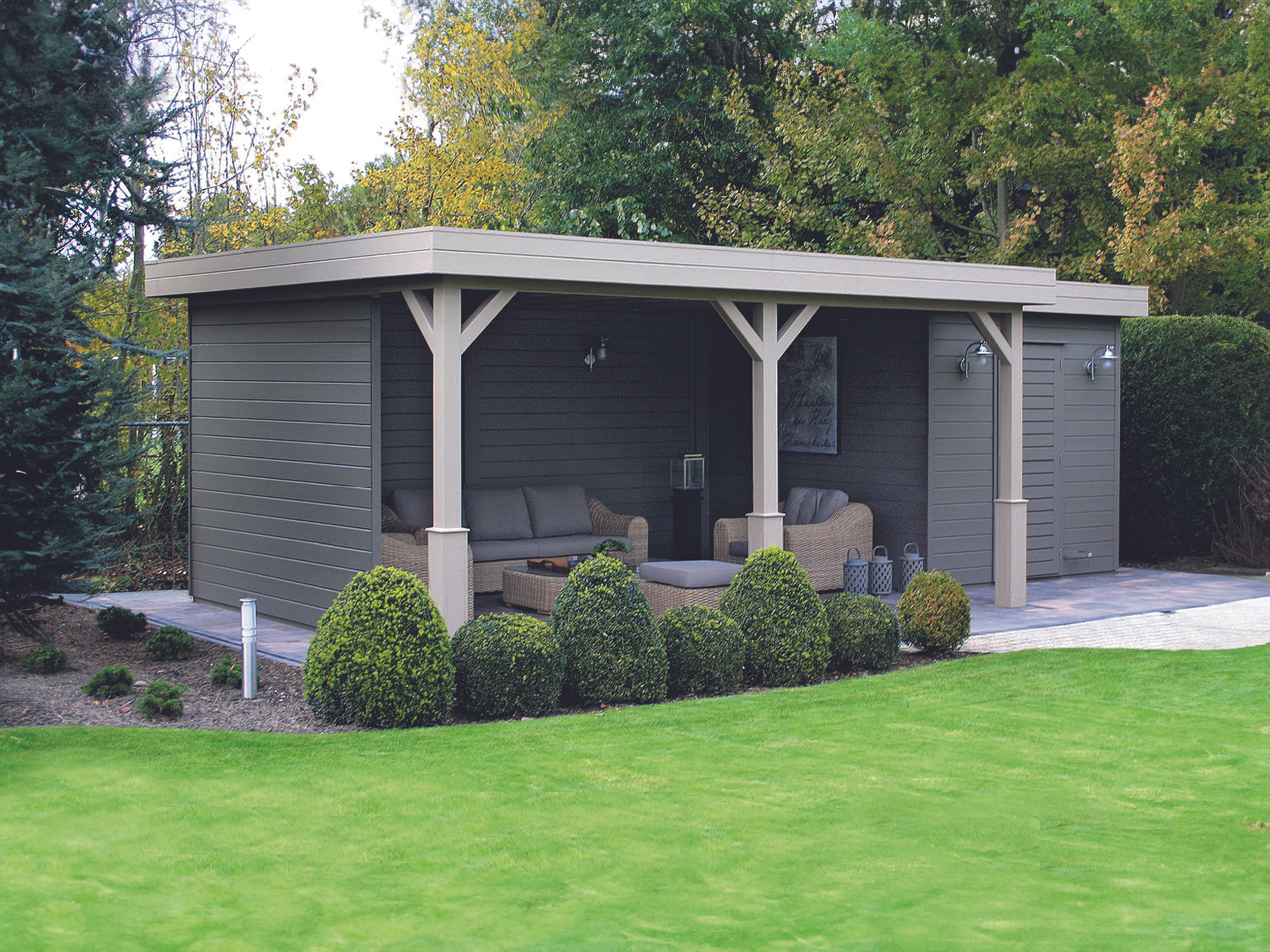

Lugarde Prima Jake PR25 Summerhouse

• Glazing: All windows and doors are fitted with HR++ Double Glazing (4mm glass + 16mm argon gas + 4mm glass), providing a high insulation value of 1.1.

• Doors & Windows: All posts, doors, and windows are laminated to help prevent warping.

• Security: Doors are fitted with a high-security 3-point locking system and high-quality handles.

• Foundation: The building sits on pressure-treated foundation beams, fixed with aluminium corner clips, which require no further treatment.

• Roofing: It features a flat roof and is supplied with a complete EPDM-kit (including silicone sealant and a roof water outlet) and wide aluminium roof trims.

• Timber: The structure is built using first-class spruce from northern countries (14–16% kiln-dried).

• Warranty: A 5-year guarantee is provided against manufacturing and/or construction defects.

• Assembly: Full assembly material is included, such as the floor plan, material list, assembly instructions, all fastenings, and metalworks.

• This Building is Untreated with no internal floor.

• Article Number: PR25

• Dimensions (Width x Depth): 600 cm x 300 cm (Other sizes are possible).

• Surface Area: 4.3 m².

• Volume: 10.6 m³.

• Wall Thickness: 28 mm (44 mm is also available).

• Total Height (Low Roof): 245 cm.

• Height to Fascia: 217 cm.

• Door Type: 1 x DD01H door.

• Roof Type: Flat roof.

• Roof Overhang: 18 cm.

• Posts/Bases: Includes 3 posts (12 x 12 cm) and 3 bases.

• Wood Type: First-class spruce.

• Construction System: Prima 3 = 1 system.

Construction drawing

See the construction drawing (pdf)
